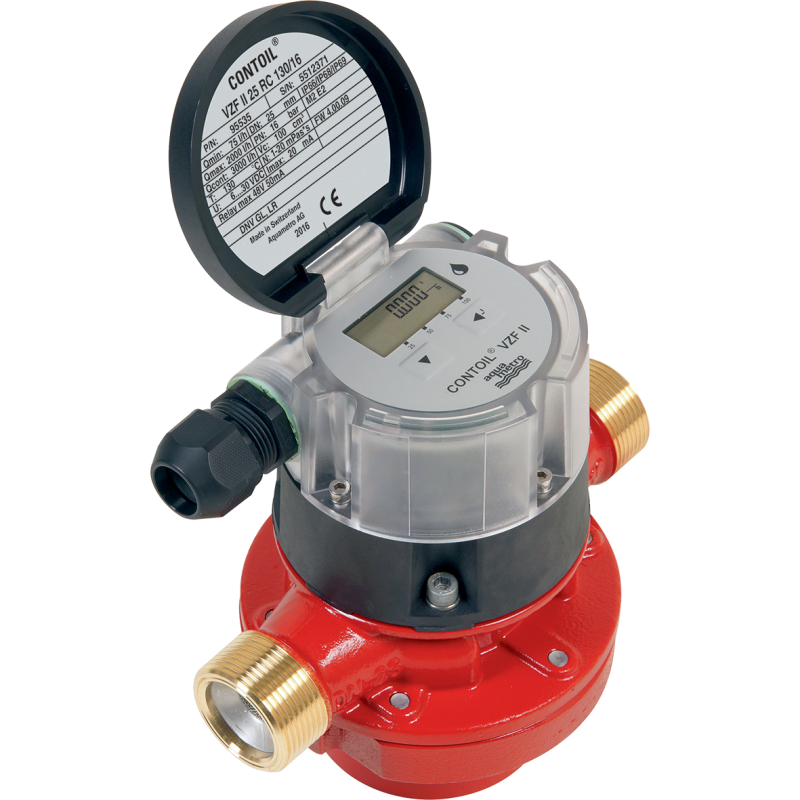

Contoil VZF II & VZFA II 15...50

Contoil VZF II & VZFA II 15...50

Ring piston meter with digital display and various outputs

Oil flow meter with digital display, logger and analog/digital outputs.
Possible mass flow measurement with built-in temperature sensor as standard.
The gauges are available with threads (PN16) and flanged (PN25 & PN40) connections.

nominal flow	nominal diameter	temperature range
Qcont 400 ... 20 000 l/h	DN 15 ... 50 mm	Up to +130/180 °C

Applications

Ships
Reserve power
Oil burners

Basic data

Properties	Capabilities
Accuracy / Classification	2004/22/CE (MID) VZF II ±1% accuracy VZFA II ±0,5% accuracy Special calibration ±0,3% accuracy Germanischer Lloyd on request Enclosure class: IP 66
Sizes	DN 15 ... 50 mm Q_cont 400 ... 20 000 l/h
Outputs	Programmable volume pulse Limit value output, digital Frequency output, flow Analog output, flow
Inputs	N/A
Power supply	6 ... 30 VDC
Important information	Assembly direction: All Rekommended straight line: None Max +130/180 °C Threaded or flanged connections Nominal pressure: PN 16/25/40 bar Mass flow measurement or temperature compensation can be activated.

Order information

Not available.

Subject to change without notice.
