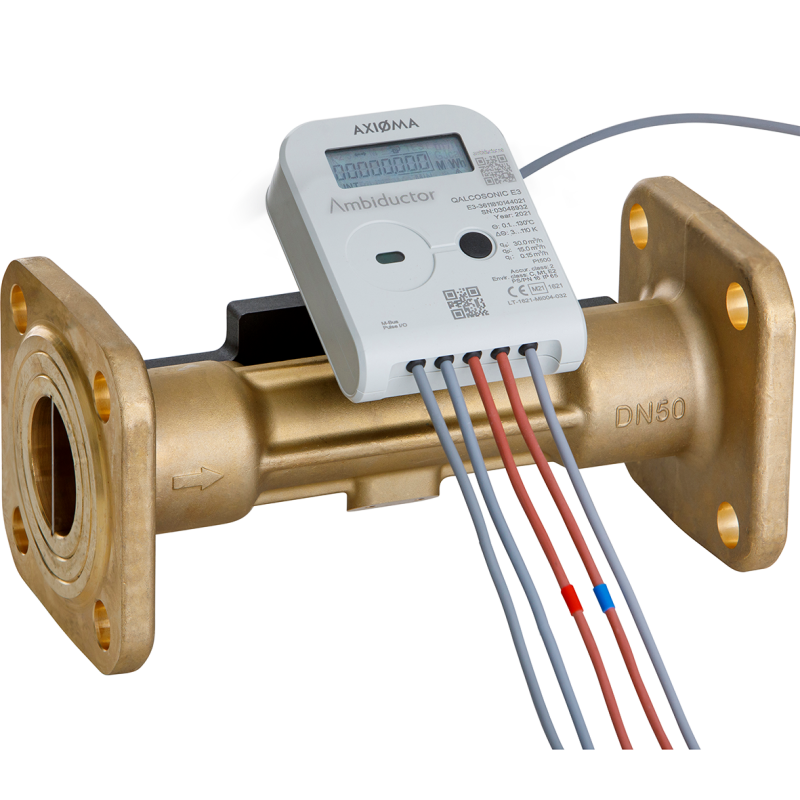

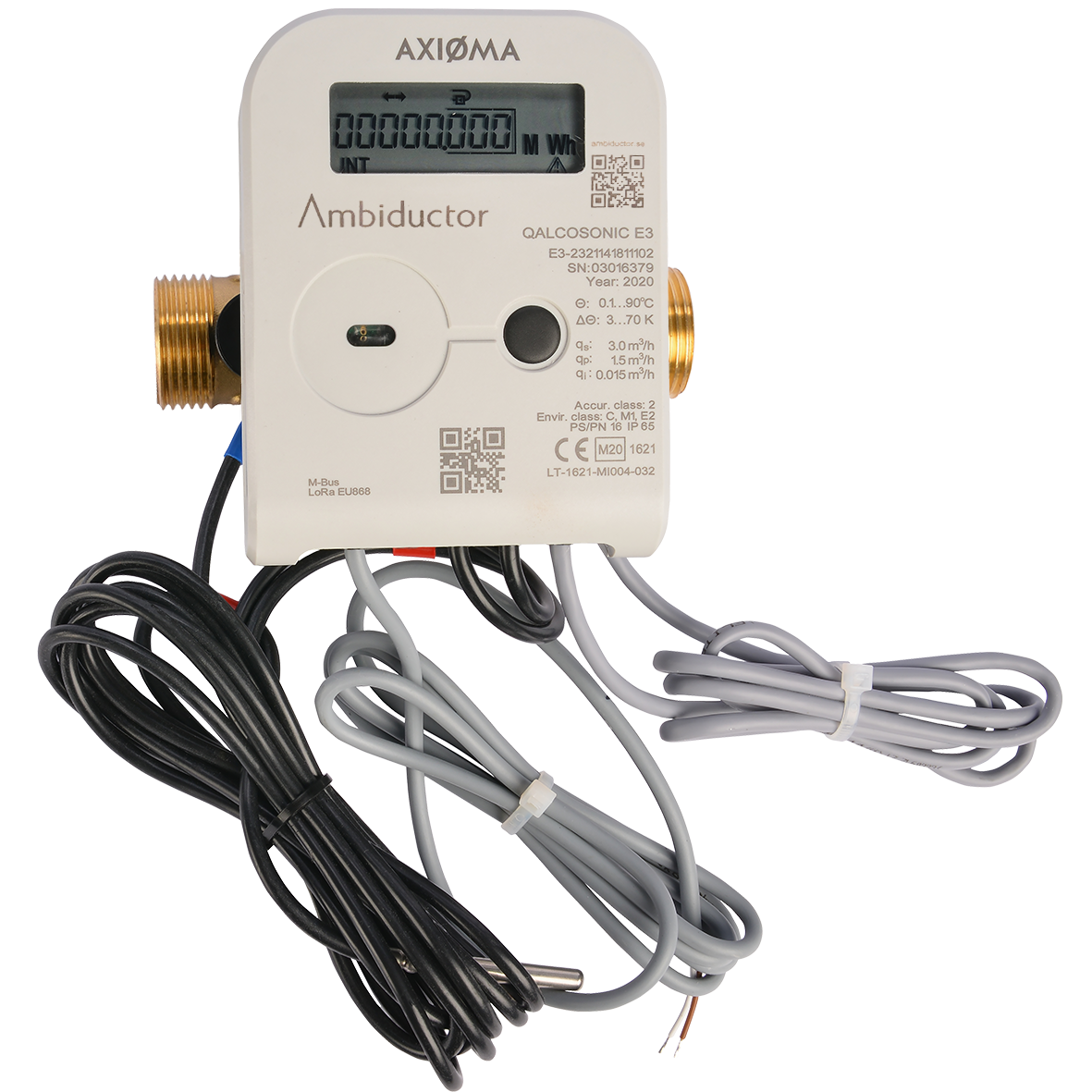

Ultrasonic meter for thermal energy
Compact energy meter for heating and cooling. Supporting district heating and most other applications.
Prepared for Internet-of-Things. Programmable during commissioning.
| Nominal flow | Nominal diameter | Temperature range |
|---|---|---|
| qp 0,6 ... 60 m3/h | DN 15 ... 100 mm | Up to +130 °C |
Use cases
- All possible heat and cooling energy measurement without glycol
- District heating
-
Popular English files:All files:
Popular Swedish files:All files:
Software:All files:
-
Only available in Swedish
-
- Compact ultrasonic engergy meter
- Is available with several forms of communication
- Horisontal and vertical montage, without the need for a stright pipe before or after
- Data logger and internal memory for max values
- External or battery powered
- Static reading technology without vulnerability to particals
- Transport mode with possible programming at commissioning
-
- No pipe work needed
- Large measuring range
- Cost efficient solution according to EN 1434
- Commissioning with out the need for external equipment
-
- Temperature sensors and pockets
- etc.
Subject to change without notice.
